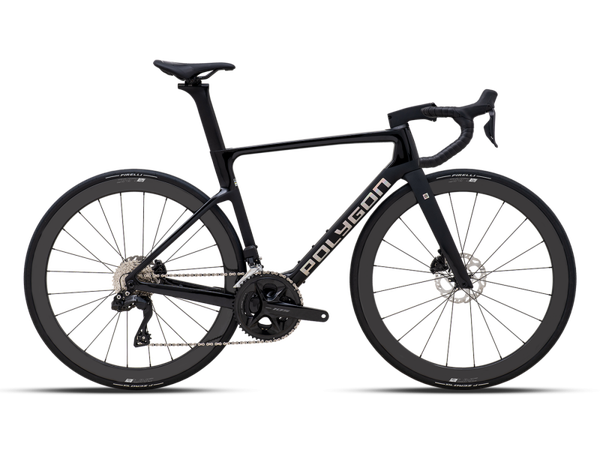

Polygon Helios A7 Di2

ACX CARBON PERFORMANCE UCI APPROVED

ACX CARBON PERFORMANCE UCI APPROVED

COSMIC PLUM / BLACK PHANTOM

HOLOGRAPHIC SILVER

SHIMANO 105 Di2 ST-R7170, 2x12 SPEED

SHIMANO 105 FC-R7100 52/36T

SHIMANO 105 CS-R7101-12 12-SPEED 11-34T

SHIMANO 105 Di2 RD-R7150

TOKEN T47 85.5 FOR 24mm SPINDLE

KMC X12 EPT 12-SPEED

LINC FLUX2, CR-MO ø 7mm

CARBON AERO, DxL: AERO 35 x 351mm

LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL)

CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: -7.5degree

INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40

LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED

700C

PIRELLI PZERO ROAD TLR 700x28C

F: CARBON 622-22 20H FOR TYRE 622-28/62 DISC TUBELESS READY / R: CARBON 622-22 24H FOR TYRE 622-28/62 DISC TUBELESS READY

F: ALLOY THRU AXLE 12x100mm 20H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK

F: STAINLESS DOUBLE BUTTED NDS:278mm DS:280mm / R: STAINLESS DOUBLE BUTTED NDS:272mm DS:274mm
